제품정보 ▒ Bullesin Protector ▒
Model : Direct Thermal Type
SPEC : BS-3,MS-1

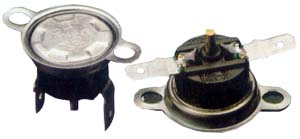

MANUAL RESET TYPE MS-1

보다작은 SIZE 에 보다 뛰어난 품질을 담았습니다.
또한 최고 사용온도 50°C DEGREE UP 에 성공하여이제부터는 200°C 이하의온도에서도 MS-1 Series 해결해 드릴 수  있게 되었습니다.

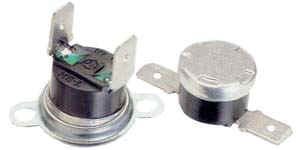

MANUAL RESET TYPE MS-1
MS-1 Accessories


n Base Type MS-1R PPS(Polyphenylene Sulfide)
   MS-1P Phenolic
n ACAP Type
   Falt Aluminum, sus, BRASS, etc Flange Aluminum

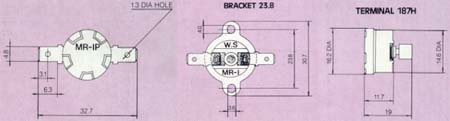

n Bracket Type
   23.8  24.5 30.0
n Terminal Type
   Vertical  # 250, #187
   Horizon # 250 # 187
   Soldiring Vertical & Horizon
   * Brackets Are Zn-Plated Steel unless other wise noted

MS-1 SPECIFICATIONS
n Electrical Rationgs
   6,000 Cycles AC125V, 15A   AC 250V,7.5A
nTemperature Range
   -30 °C ~ 170 °C (-95 °F ~ 338 °F)


MS-1 Accessories

nBase Type MS-1R PPS(Polyphenylene Sulfide)
   MS-1P Phenolic
nACAP Type
   Falt Aluminum, sus, BRASS, etc Flange Aluminum
nBracket Type 23.8   24.5  30.0
nTerminal Type
   Vertical  # 250, #187
   Horizon # 250, #187
   Soldiring Vertical (90°)  45°
   Horizon(180°)  45°   Brackets are Zn-Plated steel unless Otherwise noted
   Terminals are Sn-Plated Brass

MS-1 SPECIFICATIONS
nElectrical Rationgs
   100,000 Cycles AC 125, 15A ~ 250V, 7.5A
nTemperature Range
   MS-1R: MAX 170 °C(338 °F) Operating
   MS-1R: MAX 150 °C (302 °F) Operating
   (differential ; MIN 10 °C (18°F) degree
